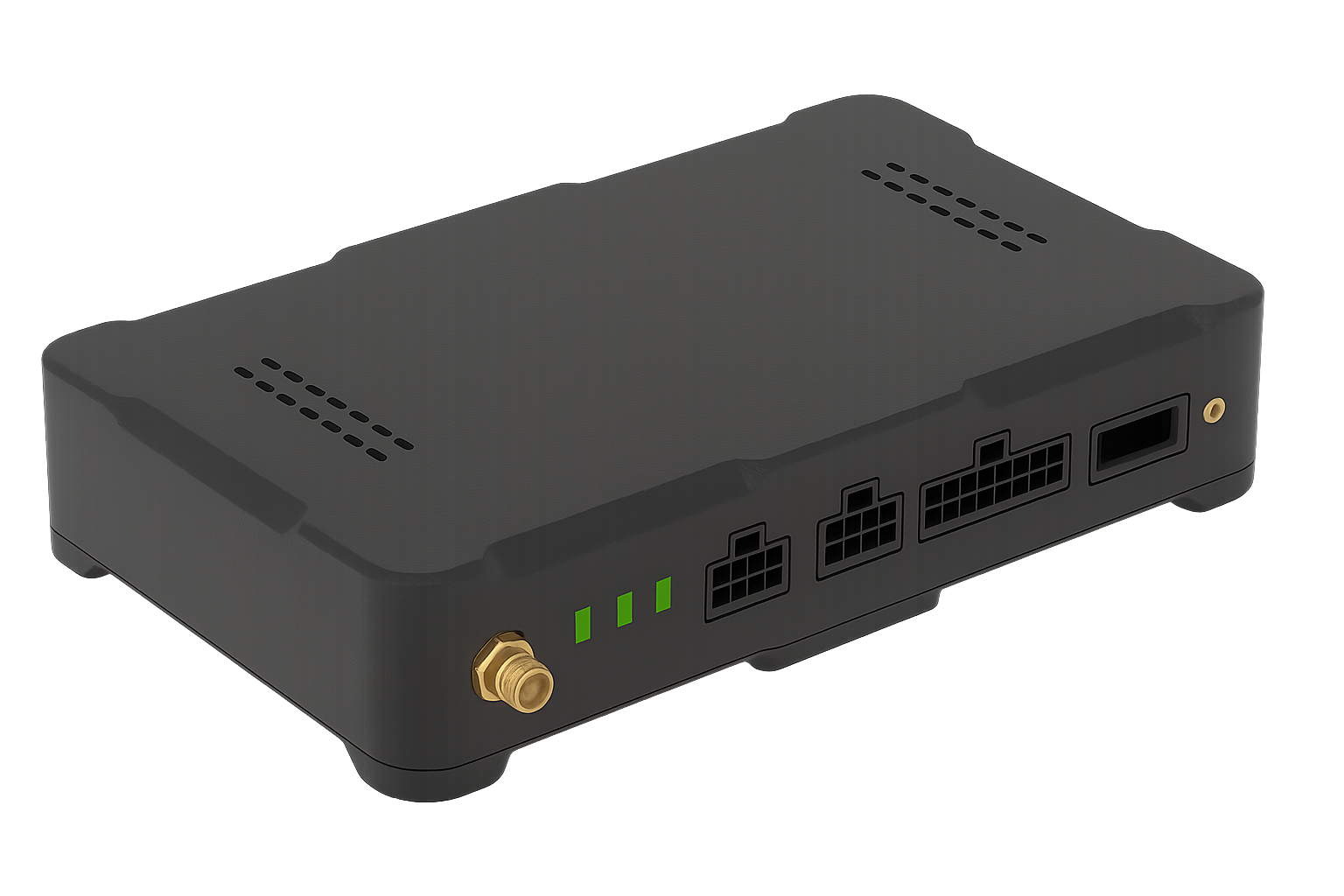

The LytxOne Gateway (LX1-G) is the core hardware unit that connects your vehicle to the LytxOne platform, combining GPS location tracking, cellular connectivity, and onboard diagnostics into a single compact device.

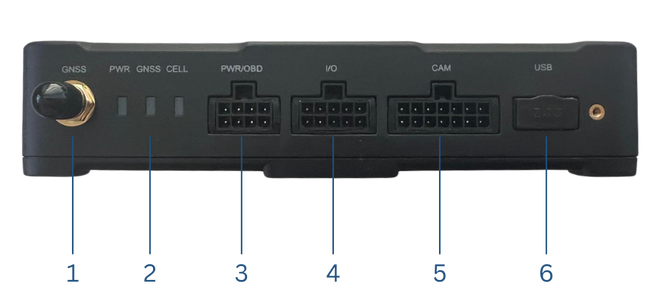

Key Components
-
GNSS Connector - Built-in GPS antenna for satellite reception and location tracking. An external antenna can be connected here if the Gateway is mounted somewhere with poor GPS reception.
-
LED Indicators - Power, GNSS, and CELL status lights. See Understanding LED Statuses.
-
PWR/OBD Port - Supplies power and collects data from the vehicle's diagnostic port.
-
I/O Expansion Port - Optional input/output expansion for auxiliary accessories (ignition detection, power detection, additional sensors).
-
CAM Port - Connects to the LytxOne Camera for synchronized video and data.
-
USB Port - Optional USB expansion for additional hardware.
Technical Specifications
| Component |
Detail |
| Network |
4G LTE, Telit PLS83-X certified module |
| Location |
GPS + AGPS, internal antenna with external antenna option |
| Diagnostics Interface |
Light/medium vehicles: J1962/OBD-II. Heavy vehicles: J1939, J1708 (non-diagnostic) |
| Processor |
Ambarella CV25, video encoding and AI acceleration |
| Auxiliary Inputs |
3 external digital I/Os including ignition sensor, plus 1 secure USB 2.0 port |
| Bluetooth |
Bluetooth 5.1 |
| Secure Sockets |
Secure SD card slot and SIM card slot |
| Storage |
128GB SanDisk soldered eMMC, with optional SD card expansion |
| Motion Sensing |
Accelerometer and gyroscope, for harsh event detection and driving-behavior context |
| Cabling Options |
OBD-II, J1939, or 3-wire harness. See LytxOne Gateway Cables by Model for the full list |
| Battery |
18650 lithium battery, for power disruptions |
| Harsh Driving Detection |
Front-facing ADAS, driver monitoring, and accelerometer-based events |
| Firmware Upgrades |
Over-the-air (OTA) support |
| Device States |
Active and Standby, wakes on network activity, movement, ignition, or RPM. See Understanding Standby Mode
|
| Power Input |
12 to 24V, 2W in Active state, 0.4W in Standby state |
| Operating Temperature |
-20°C to +85°C |
| Dimensions |
145 x 88 x 30 mm |
| Certifications |
FCC, PTCRB, RoHS, REACH, AT&T Network Ready, T-Mobile |
Compatibility
The Gateway pairs with the LytxOne Camera (LX1-C) and, for fleets running auxiliary cameras, with the LytxOne Hub (LX1-H) for up to four additional camera feeds. For cable selection by vehicle type, see LytxOne Gateway Cables by Model.
