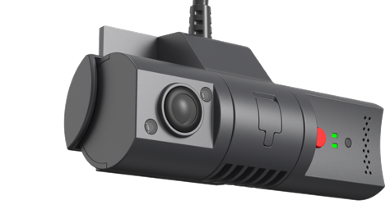

The LytxOne Camera is a dual-facing dashcam that delivers synchronized road-facing and cabin-facing video with audio, connecting directly to the LytxOne Gateway.

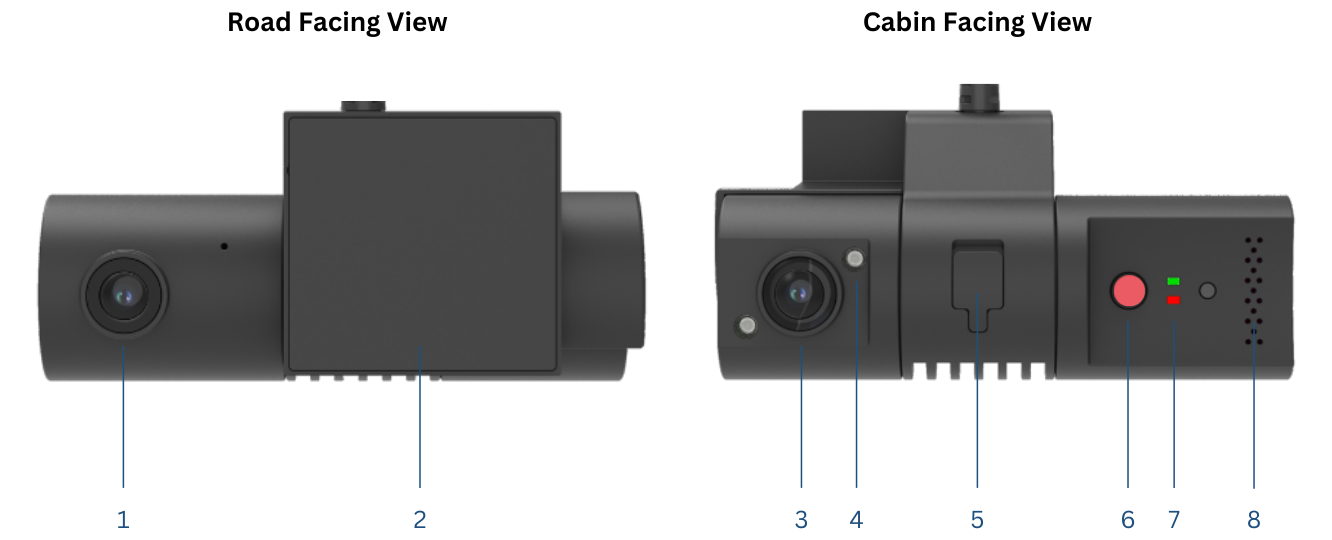

Key Components
- Road-Facing Camera, 1080p at 30fps with a 121° field of view
- 3M Mounting Pad, windshield adhesion
- Cabin-Facing Camera, 720p at 24fps, RGB and IR sensor, 170° field of view
- Infrared (IR) LEDs and light sensor, for low-light and nighttime performance
- Lock/Unlock Screw, angle adjustment for both lenses
- Driver Alert Button, lets the driver manually generate a safety event with video
- Status LEDs, power and recording status (see Understanding LED Statuses)
- Speaker and Microphone, audio recording and system alert playback
Technical Specifications
| Component |
Detail |
| Road-Facing Camera |
1080p, 30fps, 121° field of view |
| Cabin-Facing Camera |
720p, 24fps, RGB and IR sensor, 170° field of view, infrared LED and light sensor |
| Audio |
Speaker and microphone |
| Driver Alert Button |
Generates a safety event with video on demand |
| LEDs |
Multiple LEDs for power and recording status |
Compatibility
Connects to the LytxOne Gateway via the CAM port. For installation steps, see the LytxOne Gateway Installation Guide.
